Efficient exhaust systems for industrial bakeries
Tailor-made exhaust systems for maximum efficiency

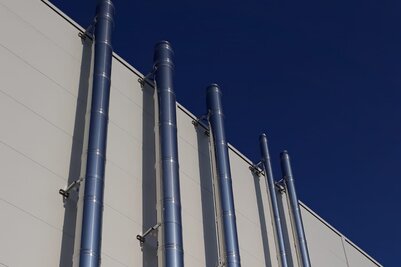

In the world of industrial bakeries, there are no standard solutions, as every project presents unique challenges. For this reason, it is crucial to develop a customized exhaust gas concept that is tailored exactly to the specific needs of each bakery operation.
As a competent partner, Schiedel stands by your side, delivering tailor-made systems and individual special components that meet the complex requirements of various oven types.
Versatile systems for modern baking ovens

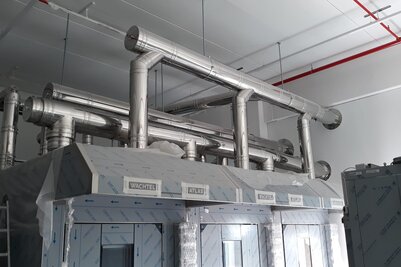

A modern industrial oven requires a versatile exhaust system that does more than just vent flue gases. It must also effectively remove steam, supply fresh air for the burner, and manage the hot air from the oven opening. Typically, four separate pipes are required for this purpose:
- A flue gas pipe
- A steam pipe
- A fresh air supply pipe
- An exhaust pipe
Cost-effectiveness and sustainability through heat recovery
Flue gases and steam are often collected via a cascade system and routed to a central heat recovery system. This allows a considerable proportion of the heat to be reused, which not only significantly improves economic efficiency, but also increases the sustainability of the entire bakery operation.
What requirements do industrial bakeries place on the exhaust system?
Mode of operation
Dry / wet
Operating pressure
-40 to +5000 Pa
Operating temperature
up to 600°C
Fuels
Air / gas / oil / wood
Our solutions for industrial bakeries
ICS
A double-walled flue gas system with continuous thermal insulation and moisture-resistant for oil and gas.
PRIMA PLUS
A single-walled stainless steel system that can be used with a special clamping band and seal for high-pressure operation up to 5000 Pa.

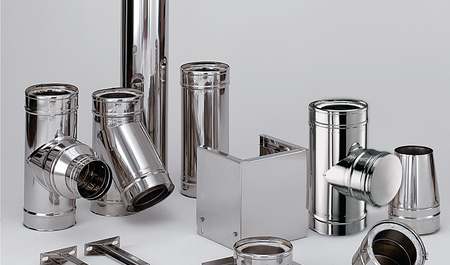

System advantages ICS
- Double-walled exhaust system
- Inner and outer casing made of stainless steel
- Quick and easy installation
- No thermal insulation and welding work on the construction site
- Pre-insulated in various insulation thicknesses
- Low weight
- Inner pipe continuously butt-welded
- For high exhaust gas temperatures up to 600°C
- Certified for pressure ratios up to 200 Pa
- Moisture-resistant for oil and gas
- Complete delivery program

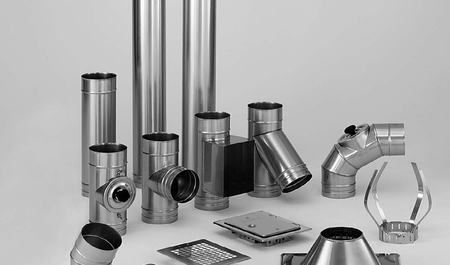

PRIMA PLUS system benefits
- Can be used with special clamping band and seal for high-pressure operation up to 5000 Pa
- Quick and easy installation
- Low weight
- Immediately ready for use
- Extensive range of components
- Butt-welded throughout
- Moisture-resistant for oil and gas
Support brackets and free-standing chimneys
In addition to our exhaust systems, we also offer matching cantilever arms and free-standing chimney solutions that round off the portfolio for a complete and professional installation.
