ePURO – Der Feinstaubfilter für Holzfeuerungen
Product details
ePURO is an electrostatic fine dust separator for effectively reducing flue gas particles in wood burning stoves, but also for wood/pellet central heating systems, up to 50kW. in existing buildings, drastically reducing PM 2.5 particles by up to 95%.
As a renewable resource, wood releases only as much carbon dioxide (CO2) when burning, the same as with the natural decomposition process in the forest, or as much as the tree has stored during its growth process. Wood does not release any additional CO2 when burning
Installation
The installation is relatively simple from the start. A 230 V connection needs to be provided on site.
The adaptability of Schiedel ePURO makes it possible to use it on existing steel chimneys. It reduces the fine dust content in the flue gas by up to 95%, which contributes to cleaner air.
Taking local emission regulations into consideration, new and existing stoves can be equipped with the Schiedel ePURO.

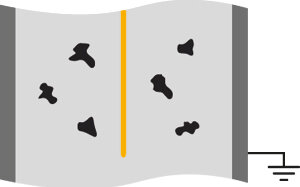

1. Fine dust particles
The fine dust particles in the flue gas flow through the chimney flue.
The fine dust particles in the flue gas flow through the chimney flue.

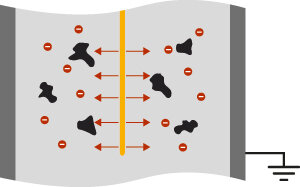

2. Electrons
Electrons are released by means of a high voltage electrode.
Electrons are released by means of a high voltage electrode.

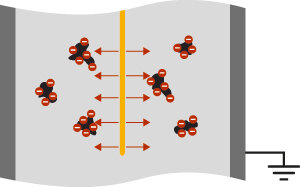

3. Charged particles
The electrostatically charged particles move to the chimney’s inner wall.
The electrostatically charged particles move to the chimney’s inner wall.

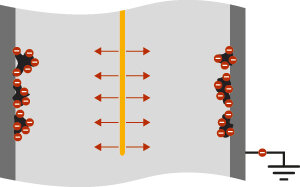

4. Fine dust collector
The fine dust collects on the inner wall of the chimney.
The fine dust collects on the inner wall of the chimney.
ePURO video
This brief animation shows how the ePURO works in collecting fine dust within the system.
Sustainability
The intelligent and sustainable use of sustainable raw materials, such as wood, as a renewable energy source, combined with energy efficiency heating systems helps to meet climate protection requirements and makes a significant contribution to lowering emissions.
Domestic indoor wood burning emissions significantly lower than previously thought
The UK government latest data shows that the overall percentage of PM2.5 attributable to the domestic indoor burning of wood fuel has been more than halved to 17% thanks to updated and more accurate wood fuel usage data for the domestic combustion sector.
Modern EcoDesign reduces particle emissions by up to 90%
Installing Ecodesign stoves along with a properly installed, high quality chimney system, which is regularly maintained, reduces primary PM, secondary PM precursors and toxicity.
Reducing reliance on gas by installing a stove
Stover are not for aesthetic purposes only. People who don’t have a wood burner, automatically assume the purpose if for aesthetics, however, in some cases firing up a stove tends to heat larger rooms far quicker than conventional radiators would.
Technical details

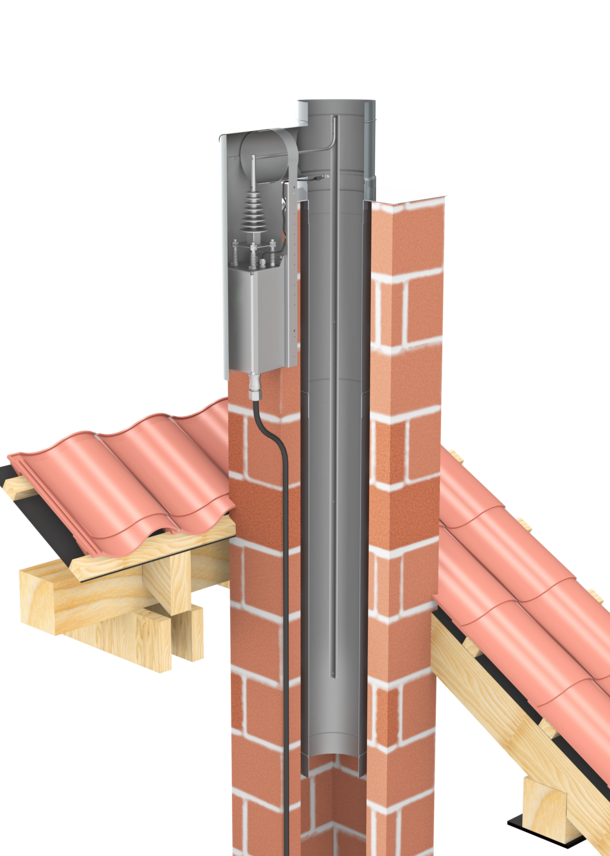

The system structure
Downloads
Technical data
| Basic data (dimensions, weight & co.) | |
Diameter (external) |
140, 160, 180, 200 mm |
Efficiency |
< 90 % |
| General product features | |
Room sealed |
No, Yes |
Approvals & details |
DIBT approval Z-7.4-3451 |
Occupation |
Single, Multi |
Suitable for passive house |
Yes |
Heating technology |
Conventional heating technology |
Notes |
Other diameters or suitable adapters are available on request. For stainless steel chimneys min. DN 130; max. DN 300.High voltage 15 to 30 kV (modulating) Electr. power max 30 W Standby operation 0.7 W |
