METALOTERM MF - Double-walled, pre-insulated&modular
Highlights
The MF system is a modular twin wall insulated flue/chimney system, made of stainless steel, with a sealing ring. MF is a universal flue/chimney system which is suitable for both high and low temperatures, non-condensing and condensing applications with flue gasses in positive and negative pressure. It can resist a chimney fire. Therefore the system is suited for a wide range of applications such as boilers, stoves and ovens.
The product range also contains a wide variety of silencers. For Passive houses the assortment provides the Iso-block which can be combined with MF. The system can also be used for CHP applications, in this case a special VITON® sealing ring might be necessary. Due to the proven quality Metaloterm® MF has a 10 year guarantee.
- Universal chimney/flue system
- Inner- and outer wall from high quality stainless steel
- No terminal bridges, uninterrupted insulation from base plate to top stub
- Stress free thermal expansion
- Fast-build system without the need of sealants
- Compatible with system ME, UE and EN
- High density and high quality insulation
- High-temperature silicone sealing ring
- Lightweight elements
- Immediately ready for use
- Chimney fire resistant
Solid fuel fireplaces
Low temperature appliances
Condensing appliances
Industrial plants
Tiled stoves
Open fireplaces
Installation animation
Cascade boiler system with the Schiedel MF systemm
Downloads
Chimney information and guides
Helpful sections for chimney installers
Details & Services

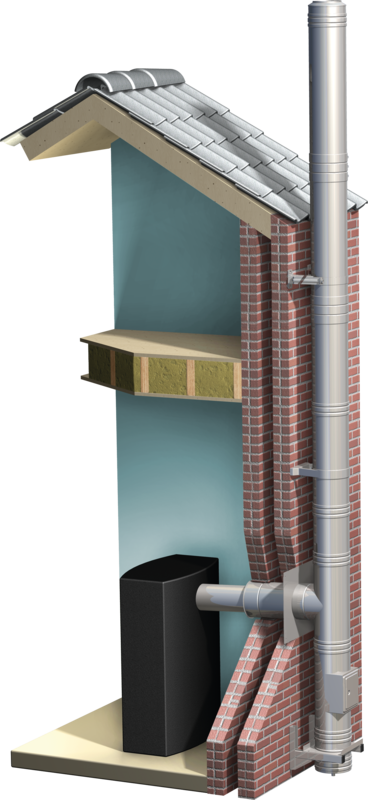

The system structure
Technical data
| Basic data (dimensions, weight & co.) | |
Wall thickness per diameter (internal) |
0,4 - 0,6 mm |
Insulation thickness per diameter |
25 - 50 mm |
Wall thickness per diameter (outside) |
0,4 - 0,5 mm |
| Application | |
Flue gas temperature (dry) |
≤ 600 °C |
Operating temperature under negative pressure |
≤ 600 °C |
Operating temperature under positive pressure |
≤ 200 °C |
Short firing temperature under positive pressure |
≤ 200 °C |
Short firing temperature under negative pressure |
≤ 600 °C |
Operating pressure |
≤ 5000 Pa |
Material (Inner liner) |
AISI 316L-EN 1.4404 |
Material (Insulation) |
Mineral fibre |
Material (Outer case) |
AISI 304-EN 1.4301 |
Thermal resistance by insulation thickness |
0,37 - 0,56 m²K/W |
| General product features | |
Operating |
Negative pressure (N), Humid, Dry, Positive pressure (P-H) |
Room sealed |
No |
Occupation |
Single, Multi |
Suitable for passive house |
No |
Heating technology |
Low temperature technology, High pressure 5000 Pa, Condensing boiler technology, Conventional heating technology |
Notes |
Before installation, remove the cover and door seals. |
Colour
- RAL Code
- Powder coating | Nasslack
- Shiny | Semi-gloss | Matt
Downloads
Tools for professionals
All downloads
Stove shops and chimney installers
Helpful sections for chimney installers
HETAS TRAINING COURSES
A set of training courses at our centre in Washington, Tyne & Wear.
PRODUCT INFORMATION HANGOUTS
We're available to discuss the technical aspects of our product range.
Architects and specifiers
Helpful sections for chimney installers

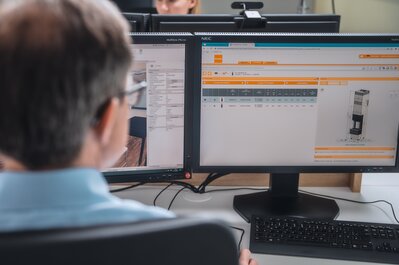

BIM OBJECTS
3D modelling object available for download.
REMOTE PRODUCT SEMINARS
We're available to discuss the technical aspects of our product range.
Additional tools and resources
Helpful sections for chimney installers

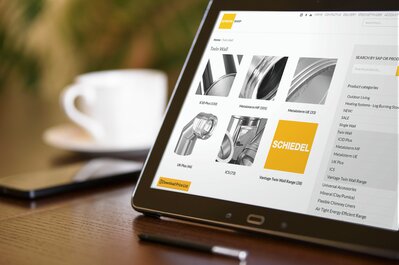

SHOP - PRODUCT INFORMATION
Products available to purchase, as well as full information on our range.
Offset Calculator
Plan your chimney offset precisely and quickly: our calculator determines the exact installation dimensions for you so that you can avoid obstacles with a perfect fit.
Choose your calculation method:
- Method: Enter the desired offset to obtain the required pipe length.
- Method: Enter an existing pipe length to calculate the resulting offset.
With the desired Offset:
With the desired length between bends:
The relevant regulations (e.g. DIN 18160 Part 1) must be observed. If necessary, provide a cleaning or inspection opening. Subject to technical changes — dimensions in mm.
Our range of mobile apps
Apps designed for seeing how our stoves and outdoor appliance look like in your homes and gardens, using the latest technology. We also have our excellent stove and chimney installation app, which has all the technical information and guides for installing our systems.

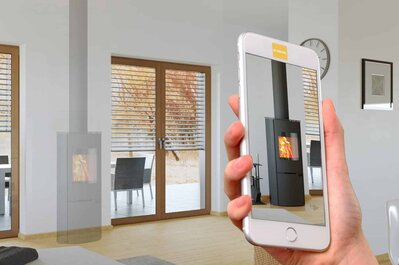

AUGMENTED REALITY CHIMNEY BUILDER FOR STOVES
