Heating plant Kragujevac

Non-Residential
Carried out in Serbia in 2021
Product(s) used: ICS
Renovation
Boilers (Biomass, Condensing,...)
Energy Centre

The project involved the supply and technical support for the installation of 5 ICS 50 Ø1200 system chimneys, each serving a 21MW gas boiler. The chimneys were installed along an 11-meter horizontal route, with a vertical section extending 31.5 meters. The ICS 50 system, known for its ease of installation and thermal insulation, includes Expl/Impl valves and high-temperature-resistant mineral wool insulation for optimal performance.

Gallery

Challenge

This project involved the supply and technical support during the installation of 5 ICS50 chimney systems, designed to follow pre-agreed routes from gas boilers. The horizontal sections of the chimneys extend 11 meters, while the vertical part reaches a height of 31.5 meters. Each installed chimney includes an Expl/Impl valve to enhance safety and ensure optimal functionality. The ICS50 system is known for its precision engineering, reliability, and ease of installation, providing an efficient solution for large-scale heating systems.

Solution

The ICS50 System Chimney solution was selected for its engineered precision joints and the designation T400 N1 W V2, making it a reliable and efficient choice. Known for its ease of installation and proven track record, the ICS50 system features continuous thermal insulation, ensuring high performance. The chimneys are equipped with high-temperature-resistant mineral wool insulation, which serves as an effective barrier against heat loss, contributing to the overall efficiency and durability of the system.

The Customer

The central heating plant in the city of Kragujevac, located in central Serbia, plays a vital role in providing heating and hot water to residential buildings in the central part of the city. With a total installed power of 100 MW, the plant ensures a reliable and efficient energy supply for the local community, supporting residential comfort during colder months. This robust system is key to meeting the growing energy needs of the city, offering both sustainability and reliability in urban heating infrastructure.

Other Projects

United Kingdom

Residential

House of Alchemy

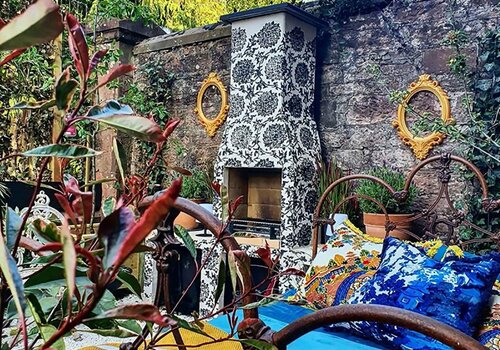

Schiedel ran a competition when introducing the GARDEN FIREPLACE concept in the UK market. The competition was launched nationally with designers submitting a concept to show off the GARDEN FIREPLACE in different settings. The project would be recorded from design through assembly to final completion. The best designs submitted would win the prize of the GARDEN FIREPLACE supplied to the site.

United Kingdom

Non-Residential

Gartnavel Hospital

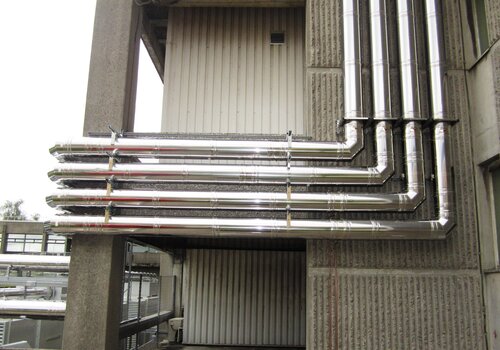

To ensure uninterrupted backup power for Gartnavel General Hospital, the project involved the delivery and installation of four 450 mm diameter chimneys. These chimneys supply the generators and were connected to the containerized engine rooms via a tailor-made frame construction. This clever design allowed the horizontal pipes to be stacked in proper, parallel pairs. This precise arrangement was maintained right up to the main building. From there, the chimneys continued horizontally before making a decisive vertical curve to finally reach an impressive height of 40 meters.

United Kingdom

Non-Residential

Scottish Southern General Hospital

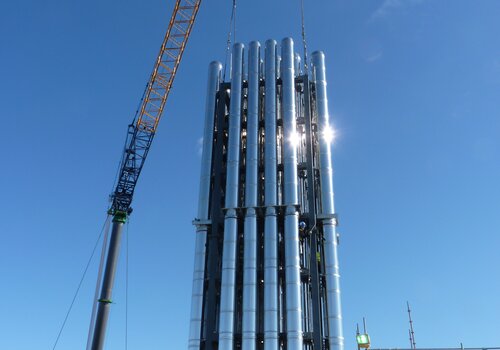

Supply and installation of 22 stainless steel system chimneys with a supporting mast for the energy centre. The mast and chimneys had to be lowered by crane through an opening in the roof of the building. This meant that the plan needed to come together for the supply and erection of the chimneys on the mast sections, to be delivered to site in full and on time to tie in with the crane hire.
