METALOTERM UE - The air gap insulated flue gas system
Highlights
The UE system is a modular twin wall flue system, made of stainless steel with an air gap insulation and sealing ring. UE is suitable for low temperatures, condensing and non- condensing applications with flue gasses in positive or negative pressure. The system is suited for a wide range of applications such as condensing heaters and boilers, gas-fired stoves and ventilation systems.
- Universal applicable flue-system
- Compatible with ME EN MF
- Pressure-tight up to 5000 Pa
- Inner- and outer wall from high quality stainless steel
- Stress free thermal expansion
- Extremely low heat mass maintains draught and allows longer runs of installed flue
Gas fired stoves
Oil fired stoves
Industrial ventilation systems
Air inlet or ventilation system
Condensing heaters and boilers
Atmospheric gas-fired boilers
Downloads
Chimney information and guides
Helpful sections for chimney installers
Details & Services

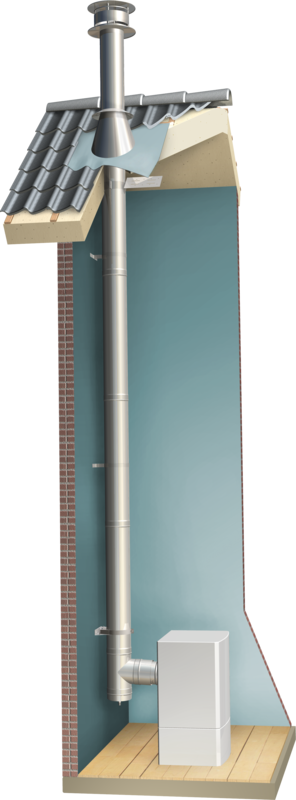

The system structure
Technical data
| Basic data (dimensions, weight & co.) | |
Wall thickness per diameter (internal) |
0,4 mm |
Insulation thickness per diameter |
7,5 mm |
Wall thickness per diameter (outside) |
0,4 mm |
| Application | |
Operating temperature under negative pressure |
≤ 400 °C |
Short firing temperature under positive pressure |
≤ 200 °C |
Short firing temperature under negative pressure |
≤ 400 °C |
Operating pressure |
≤ 5000 Pa |
Material (Inner liner) |
AISI 316L-EN 1.4404 |
Material (Insulation) |
Air gap |
Material (Outer case) |
Material No.: 1.4301 |
| General product features | |
Operating |
Dry, Humid, Negative pressure (N), Positive pressure (P-H) |
Room sealed |
No |
Occupation |
Single |
Suitable for passive house |
No |
Heating technology |
Condensing boiler technology, Low temperature technology, Conventional heating technology, High pressure 5000 Pa |
Notes |
For exhaust temperatures higher than 200 °C, all elastomer gaskets must be removed before assembly. |
