Highlights
Prima Smooth is a lightweight precision engineered product, designed for use on atmospheric wood burning and multifuel appliances with continuous operating temperatures of up to 600C.
The joints in the pipe are designed to give a smooth visual appearance and Prima Smooth is available in two surface finishes:
- Matt 316L grade stainless steel.
- Matt black painted 316L grade stainless steel using a special high temperature resistant paint.

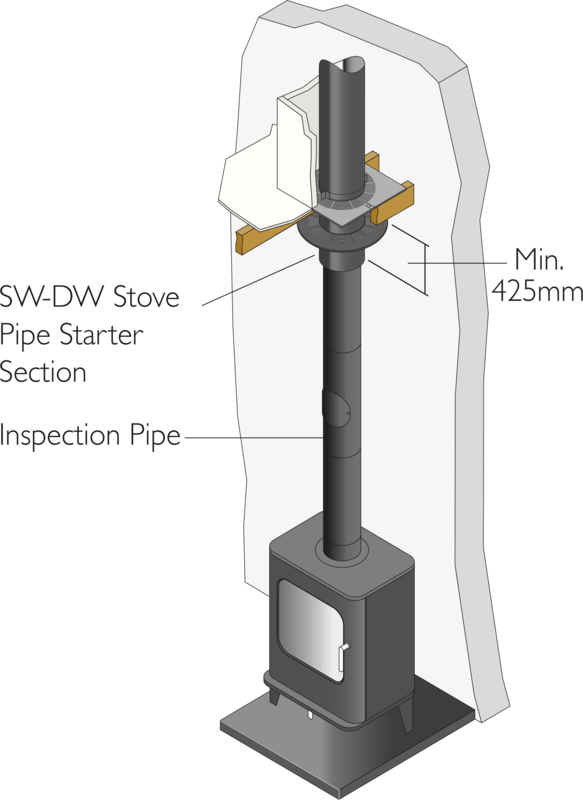

Connecting flue pipe
Steel liner for re-lining an existing chimney.
Ventilation / extraction
Approvals
Connecting Flue Pipe
BS EN1856-2 TÜV 0036 CPR 9195 029
T600 N1 W V2 L50060 GXX NM
T600 N1 W V2 L50100 GXX NM
(XX = 3 x Ø Int. of Pipe)
Chimney Liner
BS EN1856-2 TÜV 0036 CPR 9195 033
T600 N1 D V2 L50060 G
T600 N1 D V2 L50100 G
Chimney information and guides
Helpful sections for chimney installers
Details & Services
Technical Specification
- 316L Grade Stainless Steel
- Attractive appearance
- Lightweight
- Available in matt black or steel finish
- Can be painted
- Available in 125, 150, 180 & 200mm internal diameters
- Two surface and two thicknesses available 1mm & 0.6mm
Technical data
| Basic data (dimensions, weight & co.) | |
Diameter (internal) |
125/ 150/ 180/ 200 mm |
Wall thickness per diameter (internal) |
0,6/ 1 mm |
| Application | |
Material (Outer case) |
AISI 316L |
| General product features | |
Room sealed |
No |
Occupation |
Single |
Suitable for passive house |
Yes |
Heating technology |
Conventional heating technology |
