Highlights
The XD system is a double layered flexible flue system steel, made of stainless steel, with a smooth inner wall. XD is suitable for both high and low temperatures, non-condensing and condensing applications with flue gasses in positive and negative pressure. It can resist a chimney fire. Therefore the system is suited for a wide range of renovation situations as a shaft liner.
- Dimensional stability, even after multiple times of bending
- Marked every single meter
- Smooth inner wall (for the XD double layered variant)
- Manufactured from austenitic stainless steel
- Connects with ME and US

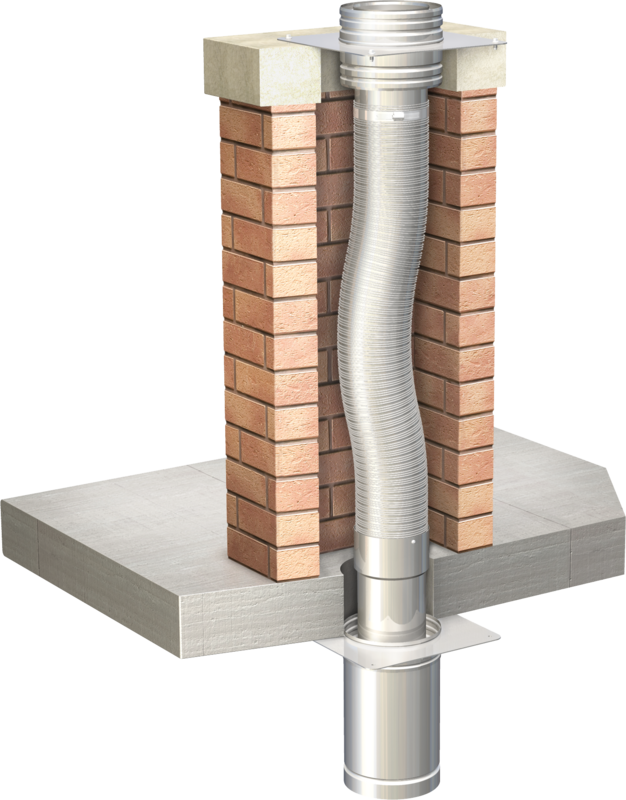

Shaft liner in renovation projects
Chimney renovation
Downloads
Chimney information and guides
Helpful sections for chimney installers
Details & Services
XD double layered flexible flue system
- Dimensional stability, even after multiple times of bending
- Marked every single meter
- Smooth inner wall (for the XD double layered variant)
- Manufactured from austenitic stainless steel
- Connects with Metaloterm® ME and US
Technical data
| Basic data (dimensions, weight & co.) | |
Wall thickness per diameter (internal) |
0,1 mm |
| Application | |
Operating temperature under negative pressure |
600 °C |
Operating temperature under positive pressure |
200 °C |
Short firing temperature under positive pressure |
200 °C |
Short firing temperature under negative pressure |
600 °C |
Operating pressure |
200 Pa |
Material (Outer case) |
AISI 316L, EN 1.4404 |
| General product features | |
Operating |
Humid, Negative pressure (N), Positive pressure (P-H) |
Room sealed |
No |
Occupation |
Single, Multi |
Suitable for passive house |
No |
Heating technology |
Low temperature technology, Conventional heating technology |
